Transactions of Nanjing University of Aeronautics & Astronautics
Collapse of a Deep Excavated Foundation Pit in the Soft Soils by 3-D FEM
- Article
- Figures
- Metrics

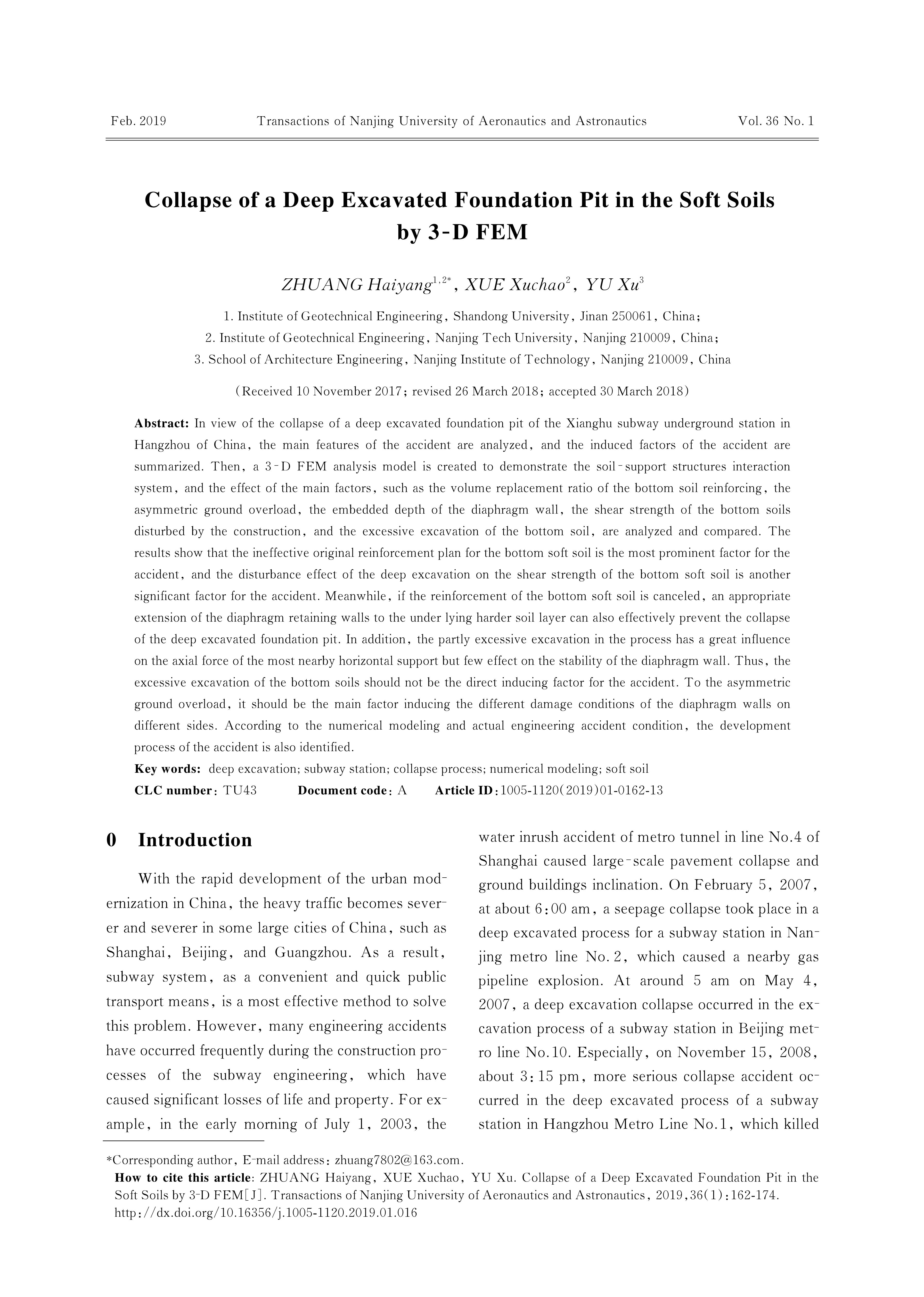

- Preview PDF
- Reference
- Related
- Cited by
- Materials
Abstract:
In view of the collapse of a deep excavated foundation pit of the Xianghu subway underground station in Hangzhou of China, the main features of the accident are analyzed, and the induced factors of the accident are summarized. Then, a 3-D FEM analysis model is created to demonstrate the soil-support structures interaction system, and the effect of the main factors, such as the volume replacement ratio of the bottom soil reinforcing, the asymmetric ground overload, the embedded depth of the diaphragm wall, the shear strength of the bottom soils disturbed by the construction, and the excessive excavation of the bottom soil, are analyzed and compared. The results show that the ineffective original reinforcement plan for the bottom soft soil is the most prominent factor for the accident, and the disturbance effect of the deep excavation on the shear strength of the bottom soft soil is another significant factor for the accident. Meanwhile, if the reinforcement of the bottom soft soil is canceled, an appropriate extension of the diaphragm retaining walls to the under lying harder soil layer can also effectively prevent the collapse of the deep excavated foundation pit. In addition, the partly excessive excavation in the process has a great influence on the axial force of the most nearby horizontal support but few effect on the stability of the diaphragm wall. Thus, the excessive excavation of the bottom soils should not be the direct inducing factor for the accident. To the asymmetric ground overload, it should be the main factor inducing the different damage conditions of the diaphragm walls on different sides. According to the numerical modeling and actual engineering accident condition, the development process of the accident is also identified.
Keywords:
Project Supported:
Clc Number:
TU43
