Transactions of Nanjing University of Aeronautics & Astronautics

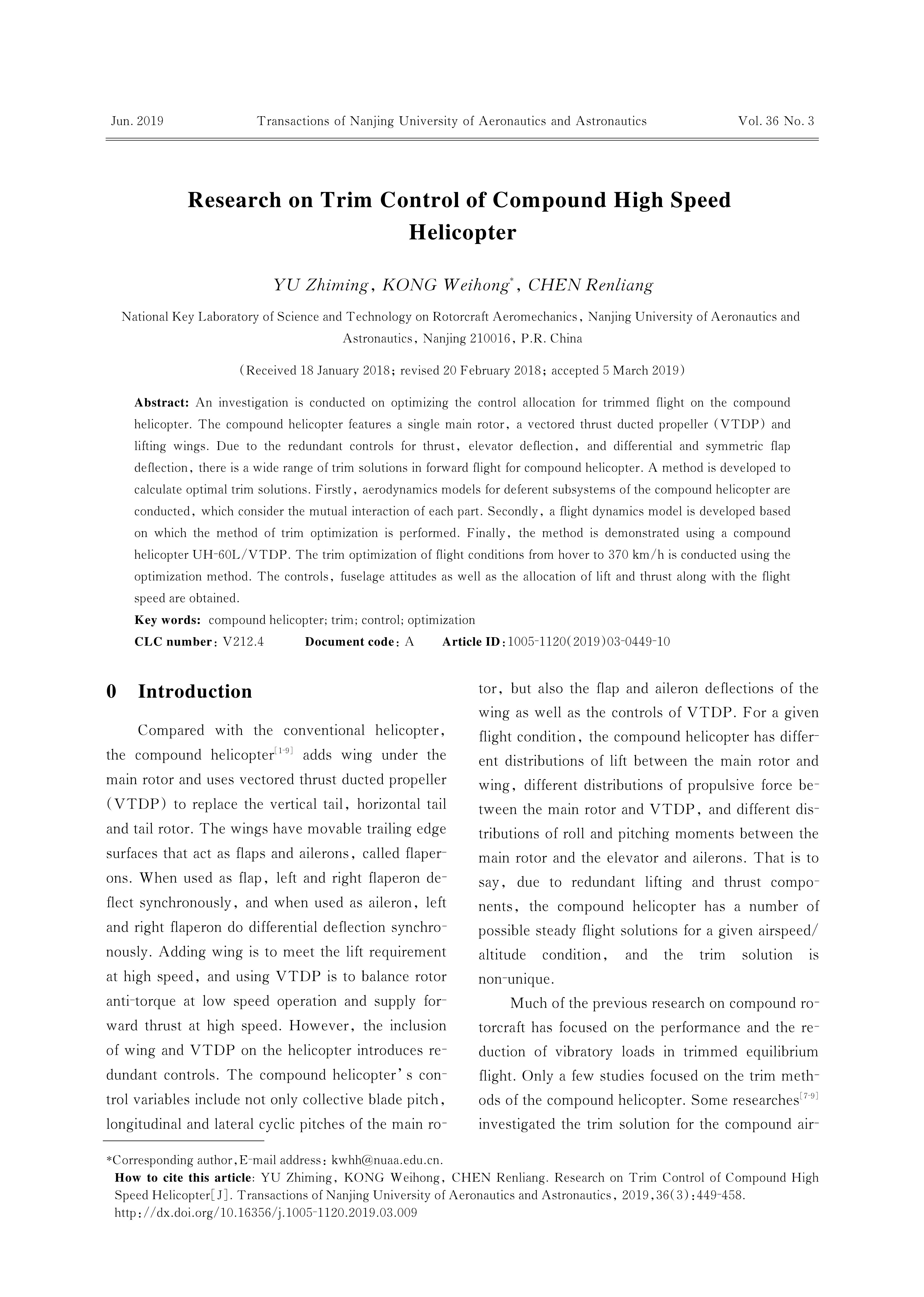

Research on Trim Control of Compound High Speed Helicopter
- Article
- Figures
- Metrics
- Preview PDF
- Reference
- Related
- Cited by
- Materials
Abstract:
An investigation is conducted on optimizing the control allocation for trimmed flight on the compound helicopter. The compound helicopter features a single main rotor, a vectored thrust ducted propeller (VTDP) and lifting wings. Due to the redundant controls for thrust, elevator deflection, and differential and symmetric flap deflection, there is a wide range of trim solutions in forward flight for compound helicopter. A method is developed to calculate optimal trim solutions. Firstly, aerodynamics models for deferent subsystems of the compound helicopter are conducted, which consider the mutual interaction of each part. Secondly, a flight dynamics model is developed based on which the method of trim optimization is performed. Finally, the method is demonstrated using a compound helicopter UH-60L/VTDP. The trim optimization of flight conditions from hover to 370 km/h is conducted using the optimization method. The controls, fuselage attitudes as well as the allocation of lift and thrust along with the flight speed are obtained.
Keywords:
Project Supported:
Clc Number:
V212.4
