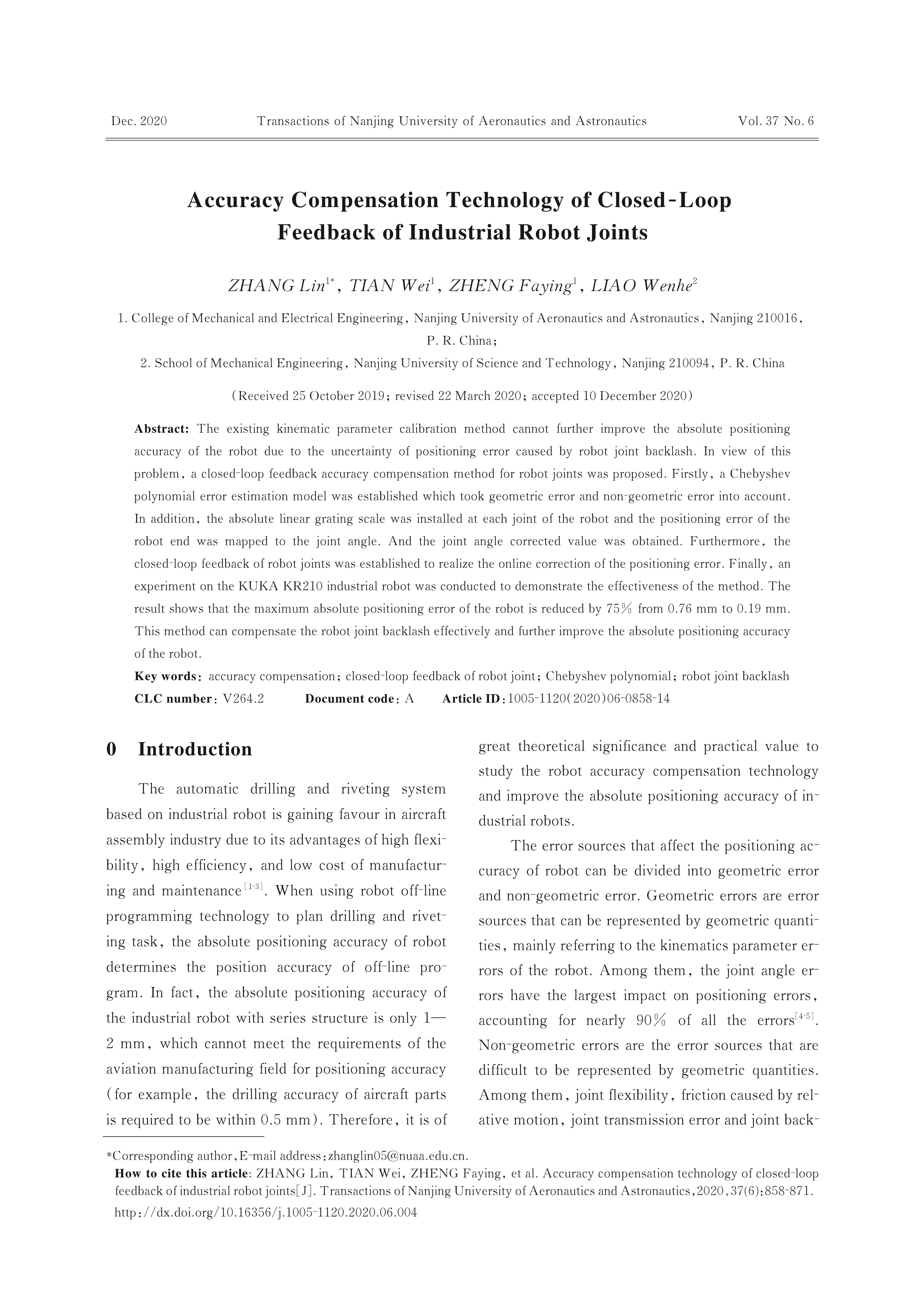

Accuracy Compensation Technology of Closed-Loop Feedback of Industrial Robot Joints
- Article
- Figures
- Metrics
- Preview PDF
- Reference
- Related
- Cited by
- Materials
Abstract:
The existing kinematic parameter calibration method cannot further improve the absolute positioning accuracy of the robot due to the uncertainty of positioning error caused by robot joint backlash. In view of this problem， a closed-loop feedback accuracy compensation method for robot joints was proposed. Firstly， a Chebyshev polynomial error estimation model was established which took geometric error and non-geometric error into account. In addition， the absolute linear grating scale was installed at each joint of the robot and the positioning error of the robot end was mapped to the joint angle. And the joint angle corrected value was obtained. Furthermore， the closed-loop feedback of robot joints was established to realize the online correction of the positioning error. Finally， an experiment on the KUKA KR210 industrial robot was conducted to demonstrate the effectiveness of the method. The result shows that the maximum absolute positioning error of the robot is reduced by 75% from 0.76 mm to 0.19 mm. This method can compensate the robot joint backlash effectively and further improve the absolute positioning accuracy of the robot.
Keywords:
Project Supported:
Clc Number:
V264.2
