Transactions of Nanjing University of Aeronautics & Astronautics

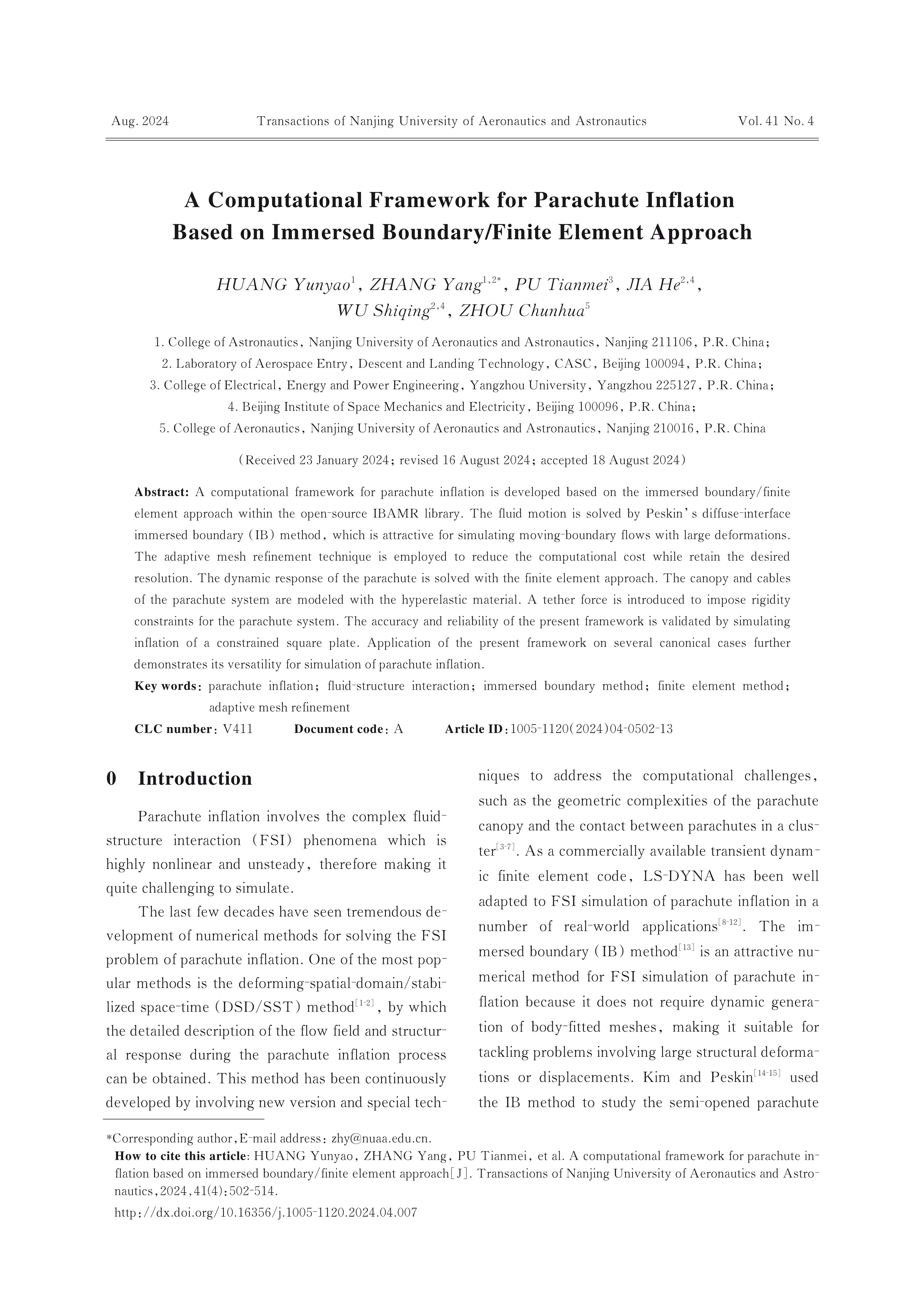

A Computational Framework for Parachute Inflation Based on Immersed Boundary/Finite Element Approach
Author:
Affiliation:

1.College of Astronautics, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, P.R. China;2.Laboratory of Aerospace Entry, Descent and Landing Technology, CASC, Beijing 100094, P.R. China;3.College of Electrical, Energy and Power Engineering, Yangzhou University, Yangzhou 225127, P.R. China;4.Beijing Institute of Space Mechanics and Electricity, Beijing 100096, P.R. China;5.College of Aeronautics, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, P.R. China

Clc Number:

V411

Fund Project:

This work was supported by the Open Project of Key Laboratory of Aerospace EDLA, CASC (No.EDL19092208).

  • Article
  • |
  • Figures
  • |
  • Metrics
  • |
  • Reference
  • |
  • Related
  • |
  • Cited by
  • |
  • Materials
  • |
  • Comments
    Abstract:

    A computational framework for parachute inflation is developed based on the immersed boundary/finite element approach within the open-source IBAMR library. The fluid motion is solved by Peskin’s diffuse-interface immersed boundary (IB) method, which is attractive for simulating moving-boundary flows with large deformations. The adaptive mesh refinement technique is employed to reduce the computational cost while retain the desired resolution. The dynamic response of the parachute is solved with the finite element approach. The canopy and cables of the parachute system are modeled with the hyperelastic material. A tether force is introduced to impose rigidity constraints for the parachute system. The accuracy and reliability of the present framework is validated by simulating inflation of a constrained square plate. Application of the present framework on several canonical cases further demonstrates its versatility for simulation of parachute inflation.

    Reference
    Related
    Cited by
Get Citation

HUANG Yunyao, ZHANG Yang, PU Tianmei, JIA He, WU Shiqing, ZHOU Chunhua. A Computational Framework for Parachute Inflation Based on Immersed Boundary/Finite Element Approach[J]. Transactions of Nanjing University of Aeronautics & Astronautics,2024,(4):502-514
